NSi6801 Overview
The NOVOSENSE NSi6801 is a single-channel isolated gate driver designed specifically as a pin-compatible, performance-superior replacement for conventional opto-coupled gate drivers. Where traditional optocouplers degrade over time due to LED aging and suffer from wide propagation delay variation, the NSi6801 eliminates these weaknesses by using a digital isolation architecture while retaining an input circuit that mimics LED behaviour — enabling a true drop-in substitution without any circuit redesign. The result is a gate driver with better long-term reliability, tighter switching timing, and a wider operating temperature range than the opto-isolated devices it replaces.
NOVOSENSE has engineered the NSi6801 to deliver 5.2A peak source and 5.4A peak sink output current, with symmetrical rise and fall times of 20ns — significantly faster than most opto-isolated equivalents. A typical propagation delay of 75ns and maximum pulse width distortion of 30ns ensure consistent timing accuracy across the full operating range of -40°C to 125°C. The driver-side supply accepts 10V to 32V with integrated undervoltage lockout (UVLO), and the NSi6801 achieves a minimum common-mode transient immunity (CMTI) of ±150kV/µs, ensuring reliable signal transmission across the isolation barrier in high-noise switching environments.
Available in DUB-8 and SOW-6 packages, the NSi6801 accommodates a wide range of PCB layout requirements and is footprint-compatible with popular opto-isolated gate driver packages. NOVOSENSE’s NSi6801 is an ideal upgrade path for engineers seeking to improve system reliability and efficiency in existing designs without layout changes. ABL Semi distributes the NSi6801 as a fully authentic, original NOVOSENSE factory product, with flexible MOQ and compliance-ready documentation for UK and European customers.
Key Specifications
| Parameter | Value |
|---|---|
| Driver Type | Single-Channel Isolated Gate Driver |
| Driver-Side Supply Voltage (VD) | 10V to 32V |
| Peak Source Output Current (IOH) | 5.2A |
| Peak Sink Output Current (IOL) | 5.4A |
| Rise Time (TR) | 20ns |
| Fall Time (TF) | 20ns |
| Typical Propagation Delay | 75ns |
| Maximum Pulse Width Distortion | 30ns |
| Minimum CMTI | ±150kV/µs |
| Undervoltage Lockout (UVLO) | Integrated |
| Operating Temperature Range | -40°C to +125°C |
| Package Options | DUB-8, SOW-6 |
| Input Interface | LED-emulating (opto-coupler pin-compatible) |
Applications
The NSi6801 is well-suited to any power conversion system where an opto-isolated gate driver is currently deployed and where improved switching speed, reliability, or temperature performance is desired. Key application areas include industrial motor drives, solar inverters, UPS systems, EV on-board chargers, and industrial switching power supplies. The device is equally applicable in servo drive systems, welding power supplies, and high-reliability industrial automation equipment, where its tight propagation delay, high CMTI, and extended temperature operation deliver a clear advantage over conventional opto-coupled solutions.
Pin-to-Pin Compatible Alternatives
The NSi6801’s LED-emulating input interface and standard DUB-8 / SOW-6 package pinout make it a direct drop-in replacement for widely deployed opto-isolated gate drivers, allowing engineers to upgrade system performance and reliability with zero PCB redesign and immediate BOM cost savings.
| Reference Part Number | Original Manufacturer | Why Choose NSi6801 |
|---|---|---|
| HCPL-314J | Broadcom (Avago) | Popular opto-isolated gate driver for IGBT applications; NSi6801 offers pin-compatible substitution with superior aging performance, faster 20ns switching, and higher CMTI |
| TLP250H | Toshiba | Widely used single-channel opto-isolated gate driver; NSi6801 delivers significantly higher 5A+ output current and eliminates LED degradation for improved long-term reliability |
| FOD8316 | onsemi | Optocoupler-based isolated gate driver in compatible package; NSi6801 provides tighter propagation delay and 20ns rise/fall times for more precise switching control |
| ACPL-332J | Broadcom (Avago) | Fault-output opto gate driver; NSi6801 replaces the core drive function with a digital isolation solution offering better CMTI (±150kV/µs) and wider temperature operation |
| IL4117 | Vishay | Optocoupler gate driver in SOW-footprint package; NSi6801 is a direct pin-compatible upgrade with balanced 5.2A/5.4A source/sink drive for improved switching symmetry |
Frequently Asked Questions
Is NSi6801 RoHS compliant?
Yes. The NSi6801 is RoHS compliant. NOVOSENSE manufactures the NSi6801 in accordance with EU RoHS Directive 2011/65/EU, ensuring the device is free from restricted hazardous substances including lead and mercury. ABL Semi can provide full compliance and trade documentation upon request to support UK and European procurement and regulatory requirements.
What are the pin-to-pin replacements for NSi6801?
The NSi6801 is a direct pin-compatible drop-in replacement for a range of widely used opto-isolated gate drivers, including the Broadcom HCPL-314J and ACPL-332J, Toshiba TLP250H, onsemi FOD8316, and Vishay IL4117, all of which share compatible package footprints and LED-input interfaces. Refer to the compatibility table above for a detailed feature comparison.
What is the minimum order quantity (MOQ) for NSi6801?
ABL Semi offers flexible MOQ for NSi6801, supporting both prototype quantities and mass production orders. Contact us for current stock and pricing.
What package options are available for NSi6801?

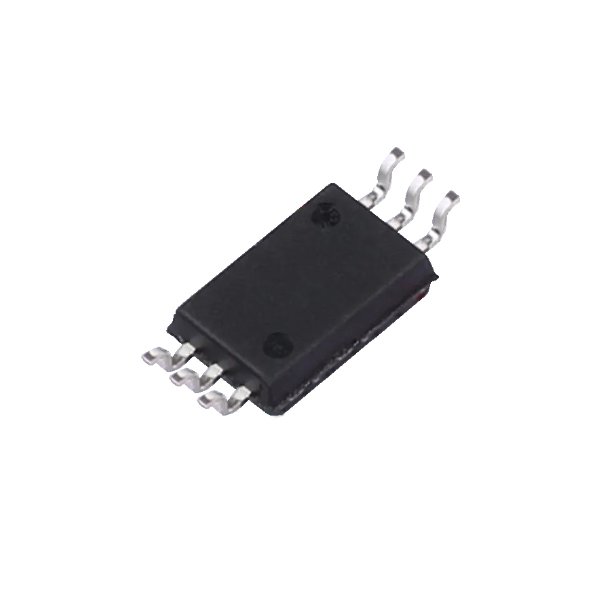

The NSi6801 is available in two package options: DUB-8 (a dual ultra-small body 8-pin package) and SOW-6 (a 6-pin small outline wide-body package). Both packages are dimensioned to be pin-compatible with commonly used opto-isolated gate driver housings, enabling direct PCB-level substitution in existing designs. Contact ABL Semi to confirm stock availability for your preferred package variant.
How does NSi6801 compare to a traditional optocoupler gate driver in terms of reliability?
The NSi6801 offers several fundamental reliability advantages over opto-coupled gate drivers. Traditional optocouplers use an LED as the signal transmission element, which degrades over time — reducing current transfer ratio (CTR) and increasing propagation delay variance throughout the product’s operational life. The NSi6801 replaces the optical transmission path with a digital isolation technology that does not age in the same way, delivering consistent propagation delay, stable pulse width distortion (maximum 30ns), and predictable performance across the full -40°C to +125°C operating temperature range. For high-reliability applications such as industrial motor drives and energy infrastructure, this characteristic translates directly into longer system service life and reduced field maintenance risk.
For complete product specifications, please refer to:
